VW Golf MK6 Rear LED Emblem (2008–2013)

VW Golf MK6 Rear LED Emblem (2008–2013) — Illuminated Tailgate Badge

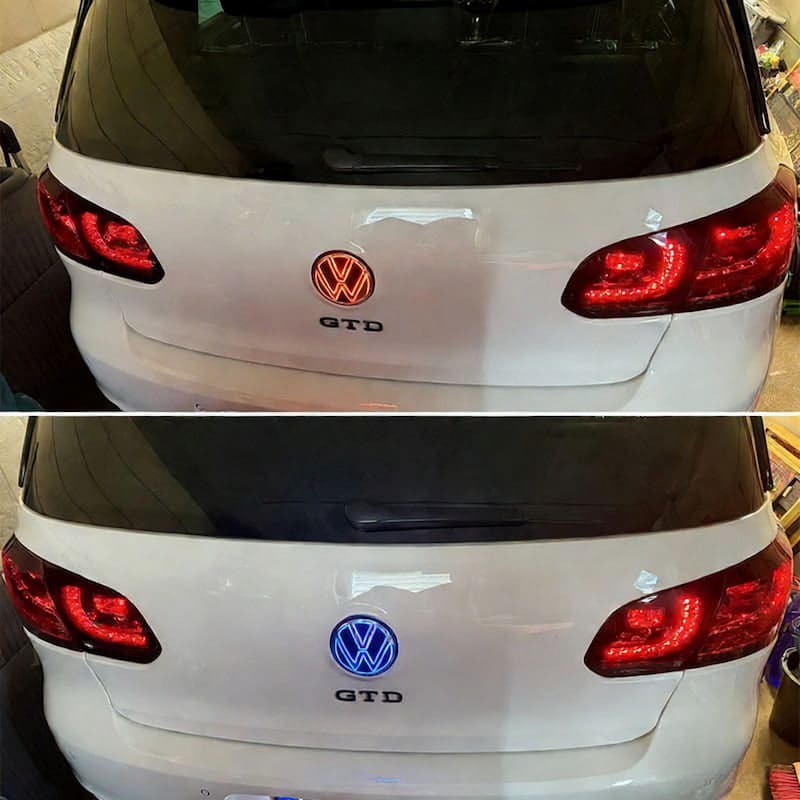

While most Golf MK6 badge upgrades focus on the front grille, the rear of the car tells a different story at night. The MK6 tailgate is clean, well-proportioned, and built around a simple set of design elements — the tail lights, the Golf and GTI badging on the right, and the VW roundel sitting squarely in the centre. That roundel is the last unlit element on an otherwise well-lit rear face when the lights are on, and this VW Golf MK6 rear LED emblem fixes that with a direct, precisely fitted replacement that adds a crisp white LED glow to the factory badge position without any modification to the tailgate, the wiring, or the bodywork.

Unlike front emblem installations where the wiring connects to a DRL or fuse box circuit, the rear emblem on the MK6 draws power from the license plate light circuit — one of the simplest, most accessible wiring connections on any Volkswagen, and one that is already switched correctly for parking light operation. The result is a rear badge that illuminates whenever the parking lights or headlights are on, exactly as a factory illuminated badge would behave.

Why the MK6 Rear End Benefits From This Upgrade Specifically

The Golf MK6 rear design is one of the more restrained in the Golf lineage. The tail lights are clean rather than complex, the badging is simple and well-placed, and the overall rear face avoids the visual busyness of some of its contemporaries. This restraint works in the car’s favour during the day but creates a specific visual gap at night — when following traffic sees the illuminated tail lights on either side of the tailgate and a dark badge at the centre, the overall impression is of a rear end that is missing one of its intended elements.

The rear LED emblem resolves this specific gap. It is not a dramatic visual transformation — it is a precise correction that makes the MK6’s rear face at night look like it was always intended to include an illuminated badge. On modified MK6 examples with smoked or upgraded tail lights, the effect is more pronounced, since the badge glow becomes a more prominent focal point against the darker surrounding light cluster treatment.

MK6 Variant Compatibility

Golf MK6 R owners: The Golf R MK6 has two badges on the rear — the central VW roundel on the tailgate and the separate R badge on the lower right. This emblem replaces only the central VW roundel. The R badge on the lower right remains in place and is not affected by this installation. The combination of an illuminated VW roundel and the factory R badge is the most popular configuration for MK6 R owners fitting this upgrade.

Golf MK6 Cabriolet and Variant owners: The Cabriolet and estate variants use a different rear body structure from the hatch. The boot lid / tailgate badge position and housing dimensions may differ. Please contact our team with your specific body style and build date before ordering to confirm correct fitment.

How the Rear Emblem Connects — The License Plate Light Method

The MK6 rear LED emblem does not use a T-harness or a fuse box tap. Instead it connects directly to the license plate light circuit inside the tailgate — one of the cleanest and most reliable wiring options available on any Volkswagen. The process:

1. Open the tailgate and pull back the interior trunk liner to expose the wiring cavity behind the rear badge position
2. Locate the license plate light wiring — it runs inside the tailgate cavity and is easily identifiable
3. Connect the emblem’s red positive wire to the positive terminal of the license plate light circuit
4. Connect the black negative wire to the negative terminal or a nearby bare metal ground point
5. Feed the harness through the tailgate panel to the badge position, press the LED emblem into the mounting position until all clips engage
6. Insulate all wire connections individually with electrical tape, test illumination with the parking lights on, then refit the trunk liner

The emblem illuminates whenever the parking lights or headlights are switched on — the same activation behaviour as the license plate lights themselves. No dedicated wiring tap, no fuse box access, and no modification to any other circuit in the car. Full installation instructions are included with every order.

What Happens When You Combine the Front and Rear LED Emblems

Many MK6 owners who order the rear LED emblem already have the front light up emblem fitted, or order both at the same time. The combination works particularly well on the Golf MK6 because the front and rear upgrades activate on different circuits — the front on the ignition or fuse box circuit, the rear on the parking light circuit — which means the front badge illuminates whenever the engine is running and the rear badge illuminates whenever the external lights are on. The visual result at night from a distance is a car that has a lit VW roundel visible from both the front and the rear simultaneously, which is a more complete effect than either emblem achieves on its own.

MK6 GTI — Does the Red Badge Option Apply Here?

We are occasionally asked whether a red LED rear emblem is available for the Golf MK6 GTI — to match the red GTI lettering and accent treatment on the rear of that car. Currently the rear LED emblem for the MK6 is available in white illumination only. The white LED badge complements the GTI’s rear treatment cleanly and reads as a premium addition rather than a colour mismatch. If a red LED variant for the MK6 GTI rear becomes available, it will be listed separately in our VW Light Up Emblem collection.

Key Specifications

• Compatible models: Golf MK6 hatch, GTI, Golf R (2008–2013) — confirm for Cabriolet and Variant body styles
• Platform: PQ35
• Wiring method: License plate light circuit — positive to positive, negative to ground
• Activation: Illuminates with parking lights and headlights
• Illumination colour: White LED
• Waterproof rating: IP67
• LED lifespan: 50,000+ hours
• Coding required: None
• Warranty: 1 year
• Return policy: 30 days

What’s in the Box

• 1 × VW Golf MK6 rear LED emblem

Pair this with the VW Golf MK6 Front Light Up Emblem for a fully illuminated front and rear badge combination. Also explore the full VW Light Up Emblem collection and VW Door Lights.
