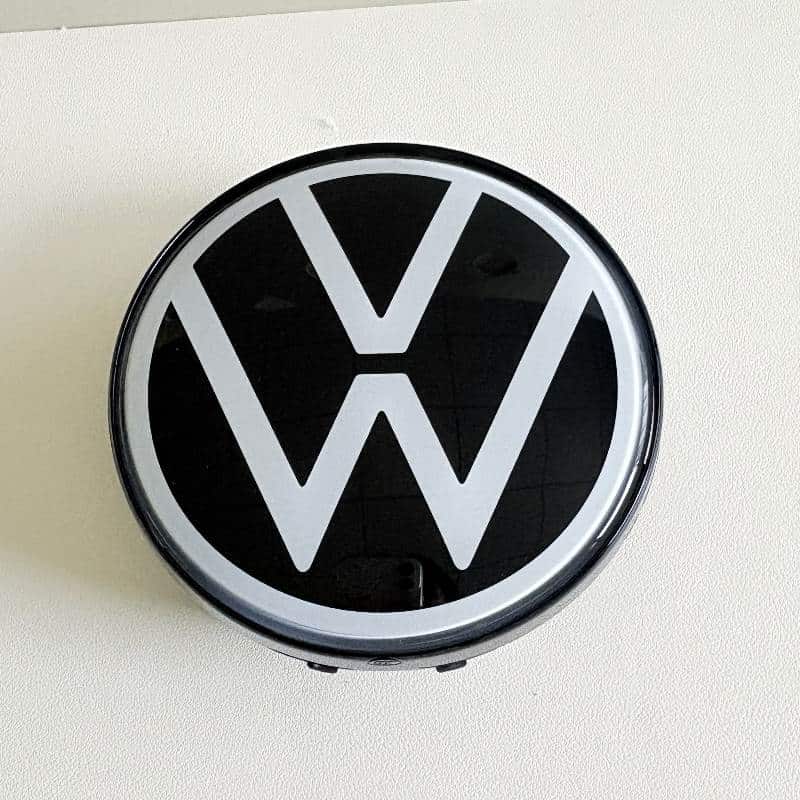

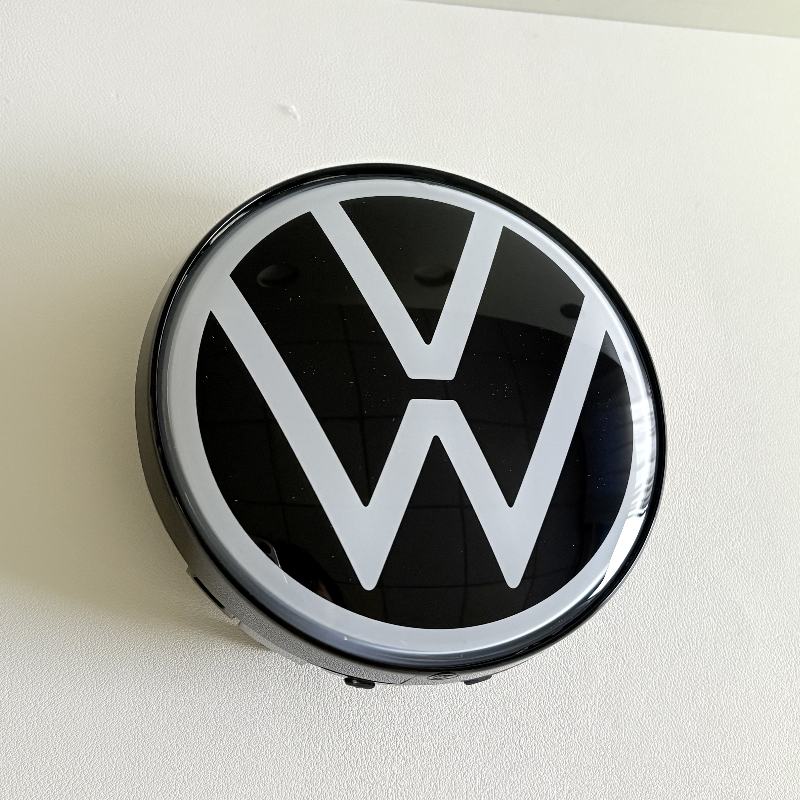

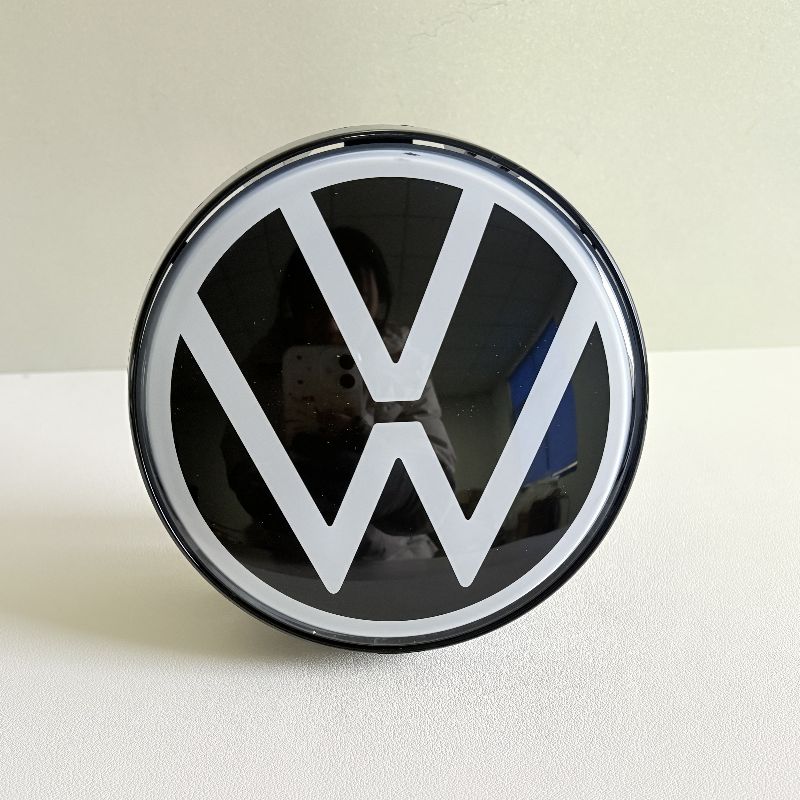

VW ID.5 LED Emblem (2021–Present) — LED Illuminated Front Badge for Models Without 360 Camera

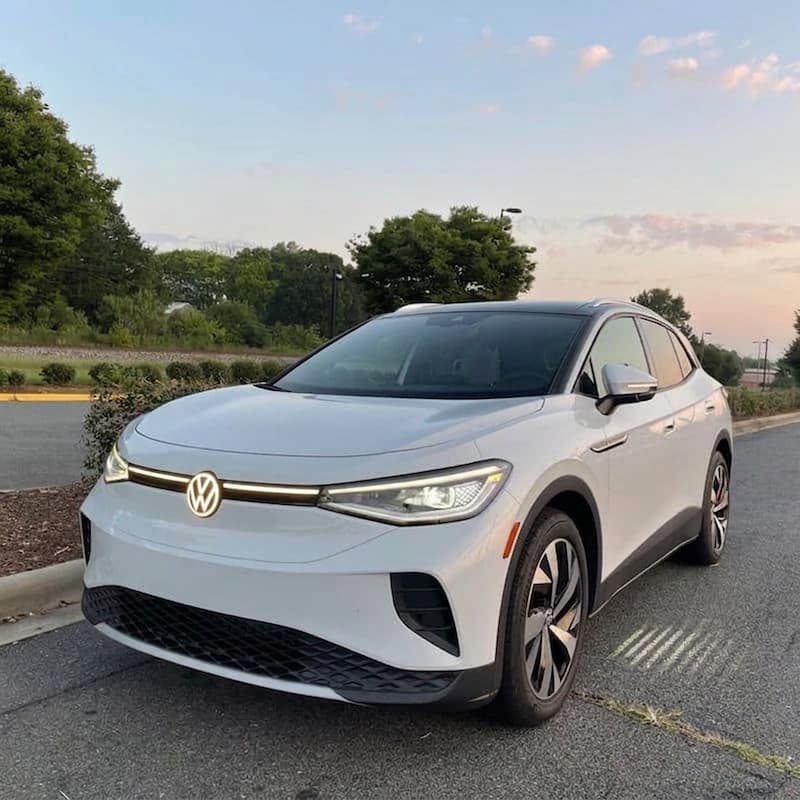

Upgrade the front of your Volkswagen ID.5 with this premium VW ID.5 LED emblem — a direct OEM-style replacement for the factory VW roundel on the front grille panel that adds a crisp, high-intensity LED glow every time the car is running. This version is designed specifically for ID.5 models without a 360-degree camera — the emblem housing has no camera aperture cut-out, which means the badge face is fully sealed and delivers the cleanest, most uniform illumination possible across the entire roundel.
If your ID.5 is fitted with a 360-degree surround view camera system, please contact our team before ordering — a different emblem variant with the camera aperture is required for that configuration, and fitting the wrong version will obstruct the camera lens.
How to Check Whether Your ID.5 Has a 360 Camera
Look at the front badge on your ID.5. If the current factory badge has a small circular or oval cutout near the centre or lower section of the roundel, your vehicle has a front-facing 360 camera mounted behind the badge — this product is not for your car. If the factory badge is a solid, unperforated roundel with no cutout visible, this is the correct version for your vehicle. If you are unsure, remove the factory badge and inspect the housing from behind, or send our team a photo of your existing badge via the contact page and we will confirm before you order.
ID.5 Variant Compatibility
| ID.5 Variant | Years | 360 Camera Note |
|---|---|---|
| ID.5 Pro | 2021–present | 360 camera not standard — confirm your spec before ordering |
| ID.5 Pro Performance | 2021–present | 360 camera available as an optional extra — confirm your spec |
| ID.5 GTX | 2021–present | 360 camera standard on GTX in many markets — confirm before ordering |
⚠ Important: This emblem is for ID.5 models without a 360-degree camera. If your ID.5 has the surround view camera option fitted, do not order this version. Contact our team to confirm the correct camera-compatible variant for your vehicle.
Key Features
- Designed for ID.5 models without 360 camera — fully sealed badge face delivers the most uniform, even illumination across the complete roundel
- Crisp LED illumination — high-quality LED technology produces even, glare-free white light with a clean, premium appearance
- Perfect OEM-style fit — engineered to the exact mounting clip pattern and badge dimensions of the ID.5 factory front badge
- EV safe — connects exclusively to the 12V auxiliary circuit, zero interaction with the ID.5’s high-voltage MEB drive battery or any EV-specific systems
- Plug & play dual T-harness connection — connects to the factory LED bar plugs, no splicing, no wire cutting, no permanent modifications
- No coding required — no VCDS, no OBD adapter, no dealer visit at any stage
- IP67 waterproof sealed housing — withstands rain, road spray, and standard car washing
- 50,000+ hour LED lifespan — rated for the full lifetime of the vehicle under normal daily use
Wiring Connection — Dual T-Harness Method
The ID.5 uses a dual-plug LED bar system with connectors on both the left and right sides of the front panel. The light-up emblem harness has three wires and connects as follows:
- White wire → Negative (−) terminal of either LED bar plug
- Green wire (1) → Positive (+) terminal of the left LED bar plug
- Green wire (2) → Positive (+) terminal of the right LED bar plug
Both green wires must be connected — one to each side — to ensure stable, even power delivery to the emblem. The emblem then illuminates automatically alongside the factory LED bars every time the car is running. Full ID.5-specific wiring diagram and instructions are included with every order.
Installation — Under 25 Minutes
- Access the badge housing from behind the front grille panel — the closed-panel construction of the ID.5 makes this more accessible than on combustion-engine models
- Release the factory badge retaining clips and remove the factory VW roundel
- Press the LED emblem firmly into the mounting position until all clips engage
- Connect the white wire to the negative terminal of either LED bar plug
- Connect the first green wire to the positive terminal of the left LED bar plug
- Connect the second green wire to the positive terminal of the right LED bar plug
- Insulate all connections individually with electrical tape and secure excess harness
- Start the vehicle and confirm even illumination across the full badge face
No drilling, no bumper removal, no coding. Fully reversible — the factory badge can be refitted at any time. Estimated installation time: 20–25 minutes.
What’s in the Box
- 1 × VW ID.5 LED emblem (no 360 camera aperture)
- Dual T-harness wiring connector (1 × white, 2 × green wires)
- Wire length: 1.2 m
- Installation guide with ID.5-specific wiring diagram
Why Choose DubAccessories?
- ID. 5-specific — not a generic emblem adapted for the platform
- IP67 waterproof sealed housing — built for long-term outdoor use
- EV-safe — 12V auxiliary connection only, no high-voltage risk
- Backed by a 1-year warranty and 30-day return policy
- Free shipping on all orders over $50
