VW ID.5 Rear LED Emblem (2021–Present) — Illuminated Badge Upgrade
Elevate the rear of your Volkswagen ID.5 with this premium VW ID.5 rear LED emblem — a direct OEM-style replacement for the factory rear badge that adds a clean, high-intensity white glow every time the car is running. Engineered specifically for all ID.5 models from the 2021 launch year through to current production, including the standard ID.5 and the performance ID.5 GTX, this upgrade requires no drilling, no cutting, and no coding at any stage of the installation.
The ID.5 is Volkswagen’s all-electric coupe SUV — a model where visual details carry significant weight against a clean, sculptural exterior. The factory rear badge sits prominently on the sloping tailgate surface and is one of the most visible elements of the car’s rear design. This illuminated replacement preserves every dimension and clip detail of the original badge while adding the lit effect seen on premium ID family variants worldwide — a factory-matched upgrade that looks entirely intentional at night.
Key Features
- Fits VW ID.5 2021–present — all trims — compatible with ID.5 Pro, Pro Performance, GTX, and all other ID.5 variants across all production years from launch
- Crisp white LED illumination — high-intensity LED chip delivers even, uniform glow across the full VW roundel face
- Plug & play installation — connects to factory rear wiring via a two-wire harness, no splicing, no cutting, no modifications
- No coding required — no VCDS, no OBD adapter, no dealer visit at any stage
- OEM-style precision fit — engineered to the exact mounting clip pattern and badge dimensions of the ID.5 factory rear badge
- IP67 waterproof sealed housing — withstands rain, road spray, and standard car washing without moisture ingress
- 50,000+ hour LED lifespan — rated to outlast the vehicle under normal daily use conditions
- EV-safe design — low current draw, connects exclusively to the 12V auxiliary circuit, no interaction with any high-voltage EV systems
ID.5 Variant Compatibility
| ID.5 Variant | Years | Notes |
|---|---|---|
| ID.5 Pro | 2021–present | Single motor rear-wheel drive — all production years |
| ID.5 Pro Performance | 2021–present | Higher output single motor — all production years |
| ID.5 GTX | 2021–present | Dual motor AWD performance variant — same rear badge housing as Pro |
Note: If your ID.5 was produced after a mid-cycle production update and you notice the rear badge housing profile differs from the photos, please contact our team with your VIN or build date to confirm the correct variant before ordering.
Important Note for ID.5 Electric Vehicle Owners
Like all Volkswagen ID series vehicles, the ID.5 operates both a high-voltage drive battery system and a separate 12V auxiliary battery for low-voltage accessories. The rear LED emblem connects exclusively to the 12V auxiliary circuit via the license plate light or tail light wiring — it does not interact with the high-voltage drive battery, the battery management system, or any motor control components. The installation process is identical to any standard rear badge replacement and presents no additional risk related to the electric drivetrain.
What Does It Look Like When Lit?
The illuminated VW roundel on the ID.5’s sloping tailgate produces a clean, even white glow across the full badge face. On the ID.5’s darker, more dramatically styled rear end the effect is particularly striking — the badge glow complements the horizontal tail light sweep that runs across the full width of the rear. During daylight the emblem looks identical to the factory badge. As ambient light drops at dusk and at night, the illumination becomes progressively more visible and impactful.
Installation
- Open the tailgate and remove the trunk liner panel to access the rear wiring cavity
- Locate the factory rear badge and release the retaining clips from inside the tailgate panel
- Feed the LED emblem harness through the tailgate panel into the interior wiring cavity
- Route the harness to the license plate light or tail light circuit — connect red wire to positive (+) and black wire to ground (−)
- Insulate each wire connection individually with electrical tape
- Press the LED emblem firmly into the factory mounting position until all clips engage securely
- Test illumination before refitting the trunk liner panel
Full step-by-step installation instructions are included with every order. Estimated installation time: 30–45 minutes.

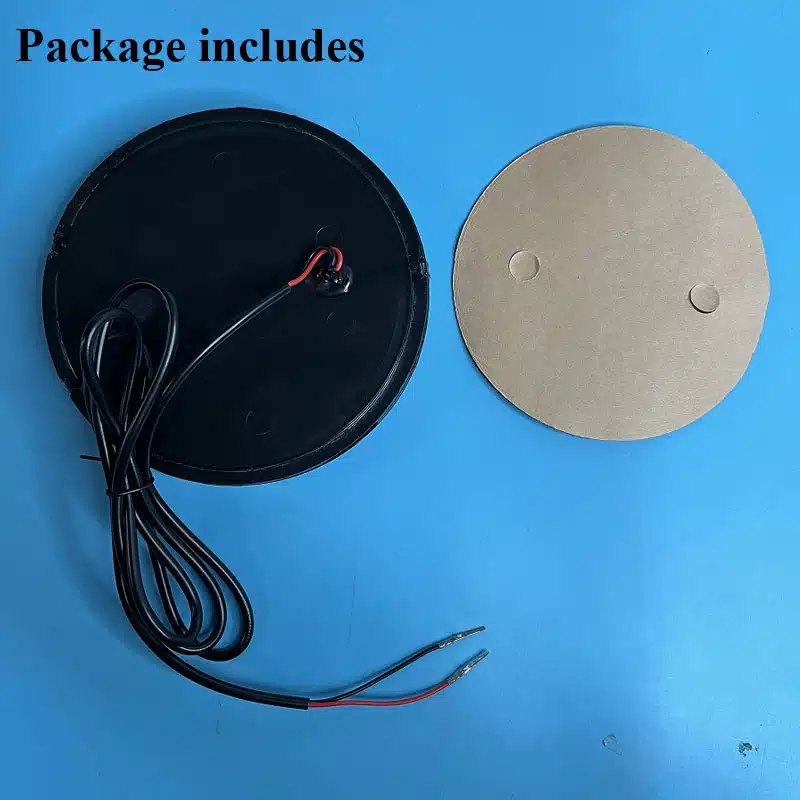

What’s in the Box
- 1 × VW ID.5 rear LED emblem
- Plug-and-play wiring harness
- Installation guide
Why Choose DubAccessories?
- IP67 waterproof sealed housing — built for long-term outdoor use in all weather conditions
- Exact OEM mounting dimensions — zero modification to your tailgate
- EV-safe — low current draw, 12V auxiliary circuit only, no HV interaction
- Factory-matched white LED — identical appearance to Volkswagen’s own illuminated badge programme
- Backed by a 1-year warranty and 30-day return policy
- Free shipping on all orders over $50
Also explore the VW ID.4 Light Up Emblem, our full VW Light Up Emblem range, and VW Door Lights.
